Profex System Panel Strut

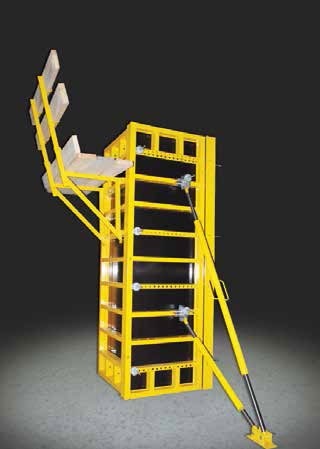

Panel struts plumb the formwork and secure it against wind
loads. Struts are fixed to the holes on the transverse profile with
the distance of 200 cm. This distance can be less for special
conditions. Panels can be used either upright or sideway.
Specially designed strut heads can be fixed onto the panels in
both situations.
When 60 cm wide panels are used side by side, 1 strut is used
for each of initial 2 panels, then 1 strut is used after 2 panels
are skipped.
When 90 cm and 120 cm wide panels are used side by side,
1 strut is used for each of initial 2 panels then 1 strut is used
after 1 panel is skipped.
When 240 cm wide panels are used side by side, 2 struts are
used for the first panel then 1 strut is used for each panel.
